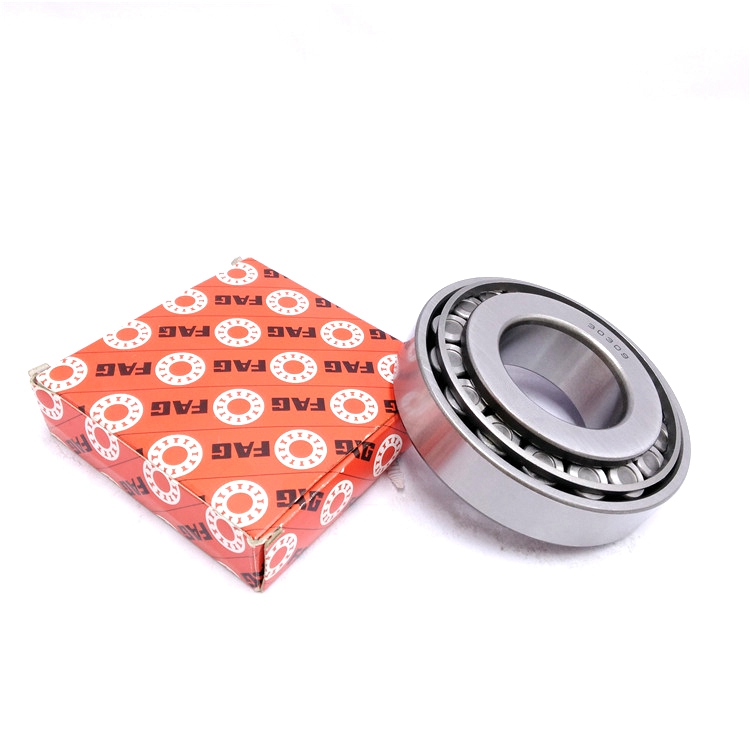

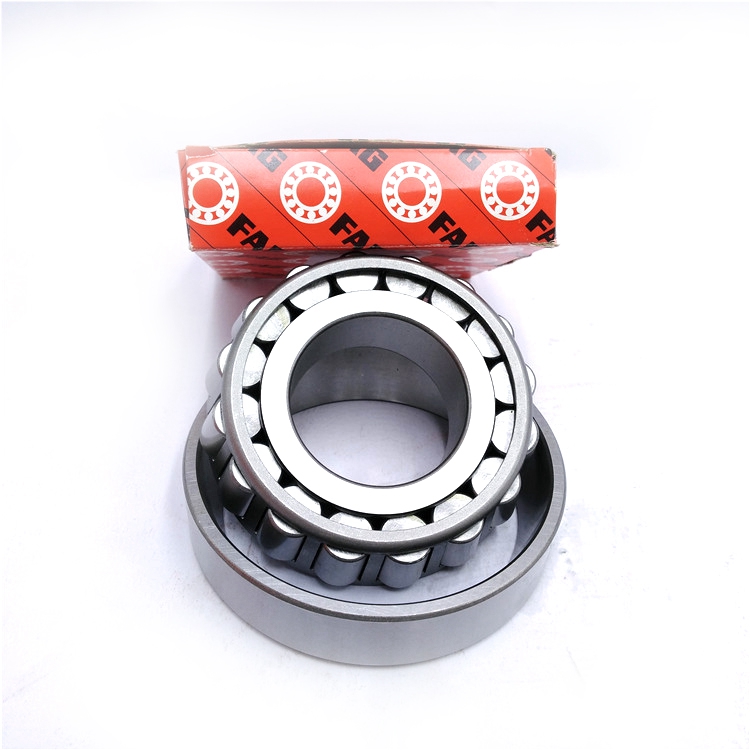

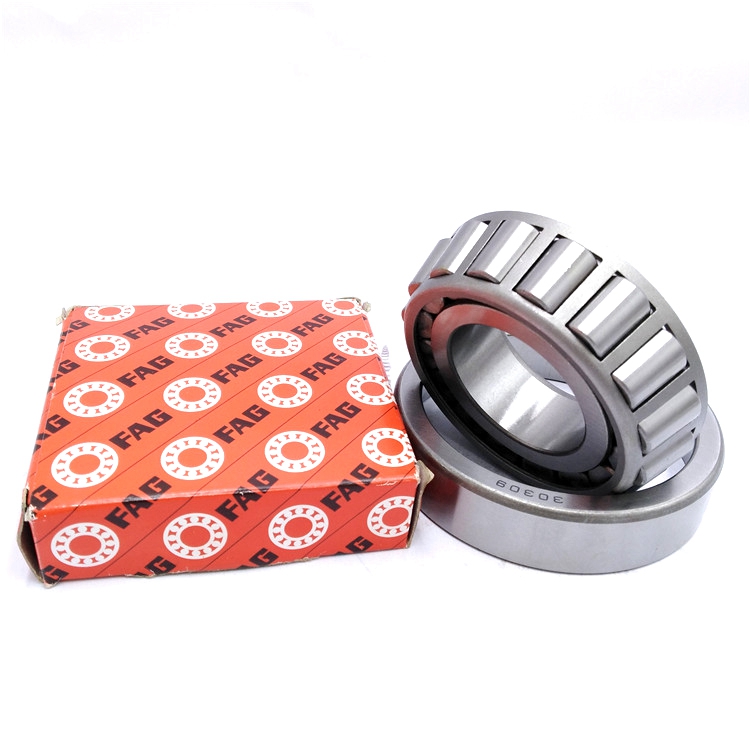

1.Taper Roller Bearing Information:
Tapered roller bearing type belongs to the separation bearing, have tapered roller bearing inner and outer race.According to these bearings on the column number of the roller is divided into single row, double row and four row circular cone roller bearings of different structure.Single row circular cone roller bearings can bear radial load and the single direction axial load.When bearing radial load, axial force component, would create a so when need another affordable bearing axial force in the opposite direction to balance.Widely used in automotive, rolling mill, mining, metallurgy, plastics machinery and other industries.
2.Taper Roller Bearing Application:
Tapered roller bearings can be used for a number of applications across many markets, including:
1)Automotive
2)Gearboxes
3)Oil & Gas
4)Printing
5)Primary Metals
6)Railway & Transportation
7)Wind Energy
3.Taper Roller Bearing Features:
Load capacity is larger
Good impact resistance
Can bear a greater axial load
The operating temperature of the bearing is low
Can adapt to the requirement of high speed
Symmetrical drum roller freedom combined with concave outer ring groove plate. Therefore, can make up the shaft deflection of shaft seat and disorder.
Operating temperature:
bearings are dimensionally stable up to +200 °C. Bearings with metal cages can be used at operating temperatures from –30 °C to +200 °C.
Achtung Bearings with cages made from glass fibre reinforced polyamide are suitable up to +120 °C.
4.Taper Roller BearingQuality&Services:
Tapered Roller Bearing Material
While other materials may be available, typically, tapered roller bearings are made of high carbon chrome steel due to their expected performance.
Tapered Roller Bearing Heat Treatments
Through-Hardened: Through-hardened heat treatment gives consistent hardness throughout the component.
Case-Hardened: Surface hardening combined with a tough, flexible core (Case-Hardened available upon special request only.
Although Through-Hardened bearings have gradually become the preference in heavy-duty commercial trucking applications, AST will supply both Through-Hardened and Case-Hardened Tapered Roller Bearings.
Tapered Roller Bearing Sizes
Most standard industrial sizes are available in inch and metric. Custom sizes are also available upon special request. AST's main stock sizes are: ID 15-240mm or .59- 9.45 inches to OD 35-40mm or 1.38-15.75 inches. Please consult an AST sales specialist for larger sizes and availability.
5.Related Taper Roller Bearing Catalogue
|
F-234975.10.SKL
|
F-231880.01
|
B40-223
|
54KWH02
|
|
F-239513.SKL
|
F-233497
|
B45-106
|
B45-130
|
|
F-239495.SKL
|
F-233012.RG
|
B45-130NX2UR
|
203KRR3
|
|
F-238637.02.SKL
|
F-233527.LR
|
B58-1
|
1414B
|
|
F-572331.TR1
|
F-234623.01.AL
|
B60-57
|
32206J
|
|
F-589319.01
|
F-234975.04.SKL
|
B60-57NXUR
|
57378A
|
|
F-805190.04
|
F-234976.04.SKL
|
BB1-0904AA
|
70081C3
|
|
F-805240.06
|
F-234977.04.SKL
|
BB1-0924
|
176221
|
|
F-805394.03
|
F-234975.06.SKL
|
BB1-0971A
|
311220A
|
|
F-845903.01
|
F-234976.06.SKL
|
BB1-0975
|
805728
|
|
F-846067.01
|
F-234977.06.SKL
|
BC1B322201B
|
F-238637.10.SKL
|
|
HQAP28184
|
F-234879
|
BC1B322722A
|
F-23949520
|
|
F-803750.02
|
F-236599
|
BR2870D
|
F-239513
|
|
LM503349/10
|
F-237541.02.SKL
|
BT1B243150
|
806037
|
|
LM603012
|
F-237542.02.SKL
|
BT1B329012
|
2022128J
|
|
NP895655
|
F-237543.02.SKL
|
BT2-0130A
|
AU1022
|
|
R22-11UQU42
|
F-238485.DKLFA
|
BTH-0074
|
B10-50D
|
|
R38Z-13
|
F-239513.01.SKL
|
BY-BAQ-3809C
|
B17-116
|
|
F-232369.07
|
17*58*65
|
90369-50002
|
50*100*48
|
|
F-238163.04
|
17*59*32.5/37.5
|
31206773207
|
30*144*88
|
|
F-552562
|
17*59*33/38
|
BTH-1219
|
55*90*55
|
|
F-567535.01
|
17*59*33/38
|
801349/10
|
40.483*82.55*30.75
|
|
A3TG2881(6PK)
|
17*59*34/39
|
802048/11
|
41.275*82.55*28
|
|
F-560201
|
17*59*37
|
803149/10
|
44.45*88.9*30.162
|
|
F-560201
|
17*59*37
|
805636
|
49*91*42
|
|
F-563248
|
17*59*38
|
805621
|
49*90*45
|
|
F-552026.05
|
17*61*35
|
806649/CR1166PX1
|
54*98*13.4/20
|
|
F-551623.03
|
17*61*35
|
F-236566.02(6PK)
|
17*53.5*34.5
|
|
F-552699.02
|
17*61*35
|
F-239662.01
|
17*53.5*35.5
|
|
F-230401.7
|
17*61*35
|
F-557045(6PK)
|
17*53.5*35/39
|
|
