Cylindrical Roller Bearing

INA PLC44-203 SH Cylindrical Roller Bearing INA Printing Machine Cam Follower Track Bearing PLC44-203 SH

Product ID：Cylindrical Roller Bearing
FEEDBACK

Product Information>

Brand Name	INA PLC44-203 SH
item name	INA PLC44-203 SH Cylindrical Roller Bearing INA Printing Machine Cam Follower Track Bearing PLC44-203 SH
Bearing Seals	OPEN
Material	GCr15,chrome steel, stainless steel,Iron
Guarantee	1YEAR
Size	25x54x21mm
Package	Pallet,wooden case,commercial packaging or as customers' requirement.
Bearings weight	0.5 kg
Payment Item	T/T ,Western Union , Paypal ,Credit card
Delivery time	3-10day

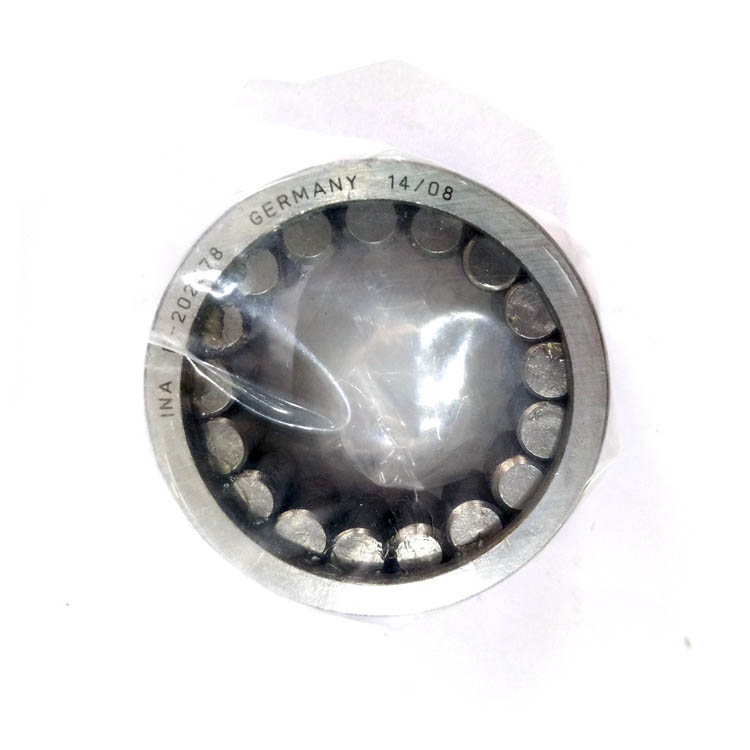

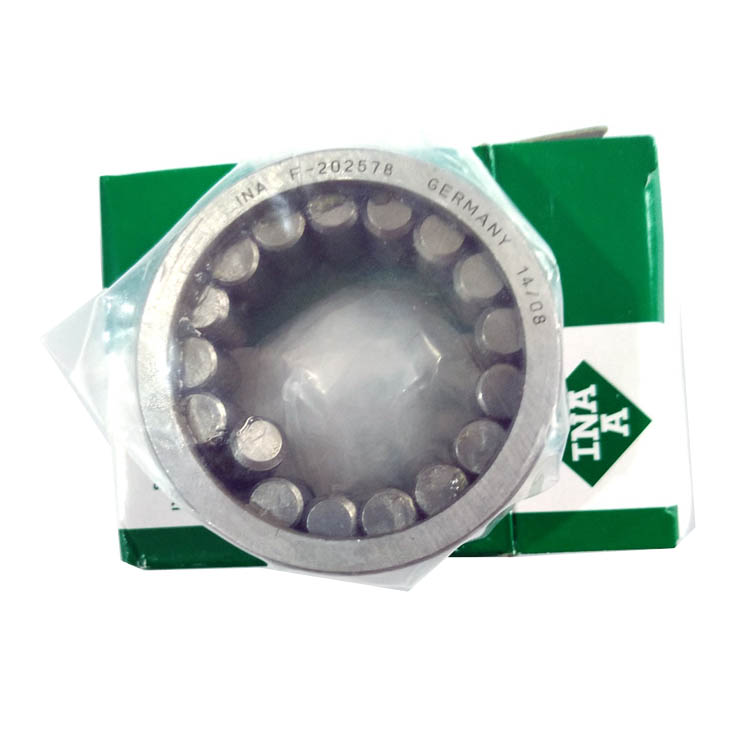

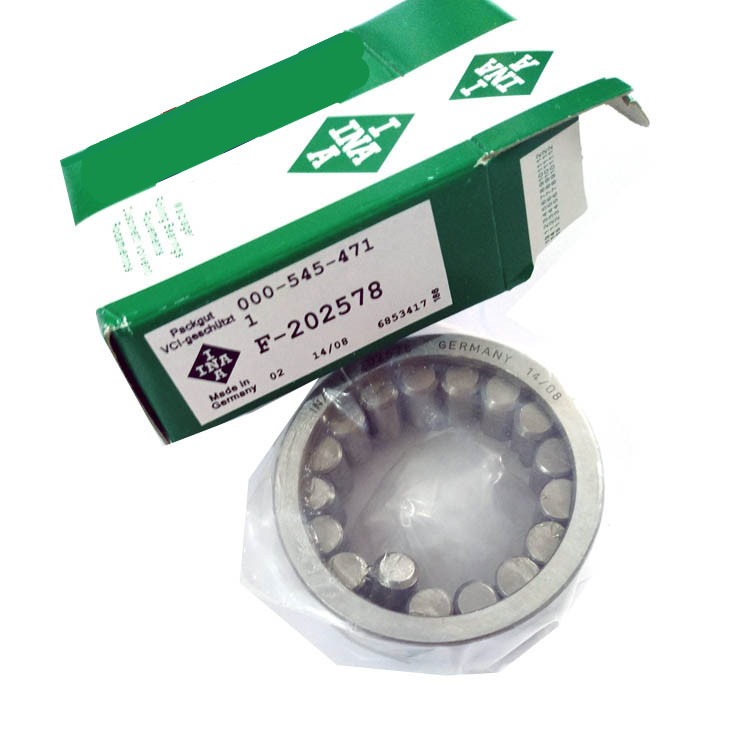

Product Display>

INA Bearing (1).jpg INA Bearing (2).jpg INA Bearing (3).jpg INA Bearing (5).jpg

Saifan Advantages>

1. Bearing Specifications :

Cylindrical roller and raceway are linear contact bearings.Large load capacity, mainly bearing radial load.The friction between the rolling body and the sleeve is small and is suitable for high-speed rotation.It can be divided into NU, NJ, NUP, N, NF and other single-row cylindrical roller bearings, as well as dual-row cylindrical roller bearings such as NNU and NN, depending on whether the sleeve has side or not.The bearing is a separable structure of inner ring and outer ring.

2. cylindrical roller bearing Andvages:

1. The roller is in line contact with the raceway or in line contact with the downline. The radial bearing capacity is large, which is suitable for bearing heavy load and impact load.

2. Low friction coefficient, suitable for high speed, the ultimate speed is close to deep groove ball bearing.

3. N type and NU type can move in the axial direction, which can adapt to the change of the relative position between the axis and the shell caused by thermal expansion or installation error, and can be used as free end support.

4. High processing requirements are required for shaft or pedestal holes. After bearing installation, the relative deviation of outer ring axis should be strictly controlled to avoid contact stress concentration.

5. The inner or outer rings can be separated to facilitate installation and disassembly.

3. cylindrical roller bearing Application:

Large and medium electric motors

locomotives, machine tool spindle,

internal combustion engine,

generator, gas turbine,

reduction gear box,

rolling mill,

vibrating screen

hoisting transport machinery

Hot Sale>

Bearing No.	Weight(kg)	d(mm)	Dr(mm)	B(mm)
F-227932	0.12	20	36	30
F-219593	0.144	25	42	30
F-204045	0.27	30	49	34
F-219590	0.28	35	55	36
F-123243	0.4	45	66	40
F-210408	0.46	50	72	40
HS-262	0.86	55	83	46
RNNX22AV	0.895	60	86	46
F-2440.326	0.94	65	93	46
RNN3005X3V	1.12	70	100	54
F-217615	1.35	75	107	54
F-210304	1.8	80	116	60
RNN306X3V	1.85	85	121	60
F-3246.628	2.6	90	130	67
F-208098	2.6	100	139	67
RNN3007X3V	3.95	110	156	80
F-385328	4.52	120	167	80
HS-263	6.7	130	183	95
RNNX10V	7.914	140	197	95
F-237005	8.215	150	206	100
F-229575.1	11.09	160	224	109
567079B	15.6	170	242	122
