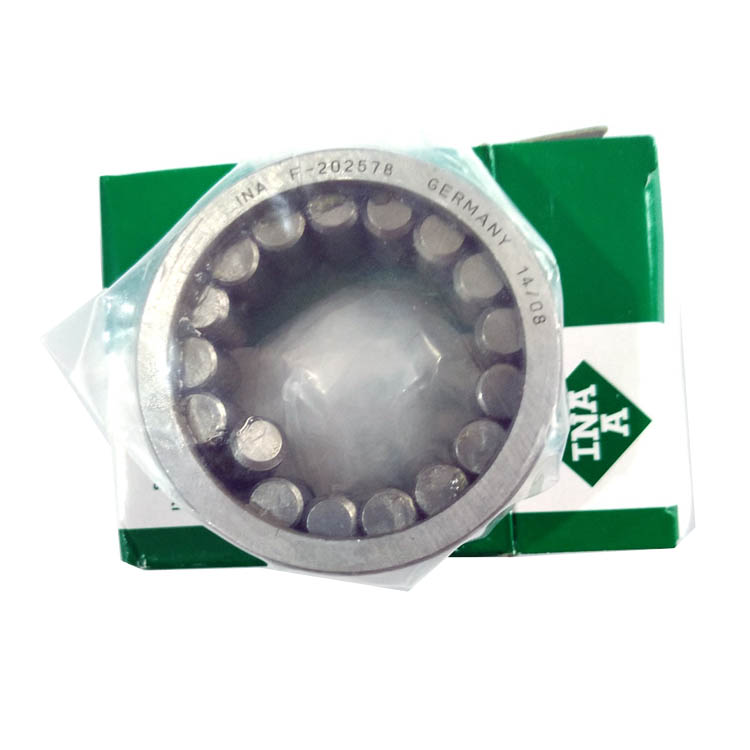

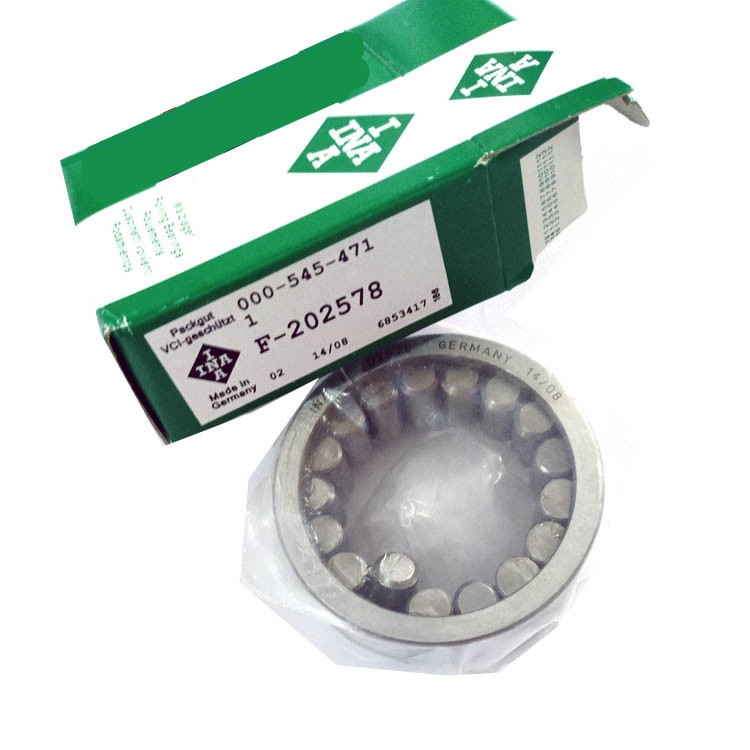

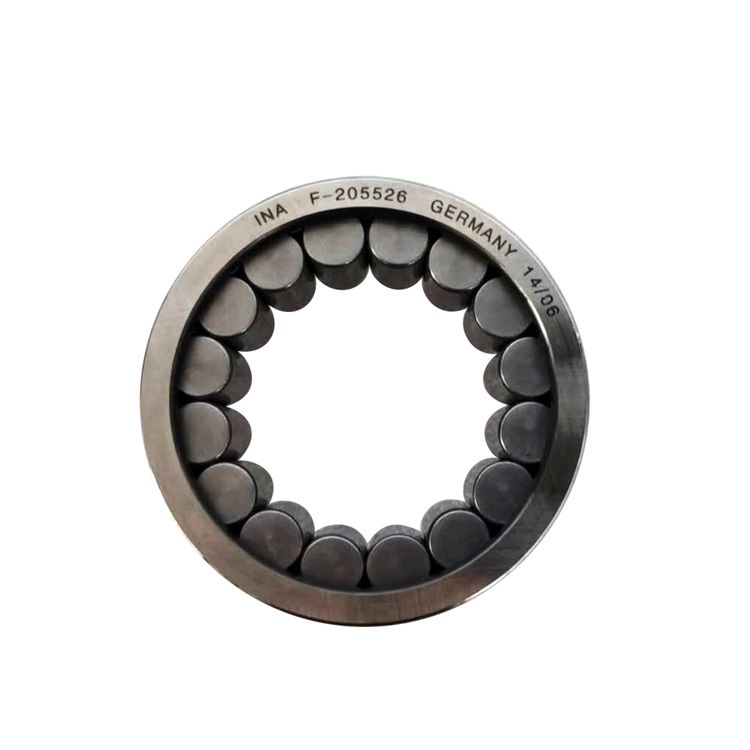

INA Printing Machine Bearing F 201380 INA F-201380.RNU Cylindrical roller bearings
| Brand Name | INA F-201380 |
| item name | INA Printing Machine Bearing F 201380 INA F-201380.RNU Cylindrical roller bearings |
| Bearing Seals | OPEN |
| Material | GCr15,chrome steel, stainless steel,Iron |
| Guarantee | 1YEAR |
| Size | 30.4x52x22mm |
| Package | Pallet,wooden case,commercial packaging or as customers' requirement. |
| Bearings weight | 0.25 kg |
| Payment Item | T/T ,Western Union , Paypal ,Credit card |
| Delivery time | 3-10day |
1. Bearing Specifications :
Cylindrical roller and raceway are linear contact bearings.Large load capacity, mainly bearing radial load.The friction between the rolling body and the sleeve is small and is suitable for high-speed rotation.It can be divided into NU, NJ, NUP, N, NF and other single-row cylindrical roller bearings, as well as dual-row cylindrical roller bearings such as NNU and NN, depending on whether the sleeve has side or not.The bearing is a separable structure of inner ring and outer ring.
2. cylindrical roller bearing Andvages:
1. The roller is in line contact with the raceway or in line contact with the downline. The radial bearing capacity is large, which is suitable for bearing heavy load and impact load.
2. Low friction coefficient, suitable for high speed, the ultimate speed is close to deep groove ball bearing.
3. N type and NU type can move in the axial direction, which can adapt to the change of the relative position between the axis and the shell caused by thermal expansion or installation error, and can be used as free end support.
4. High processing requirements are required for shaft or pedestal holes. After bearing installation, the relative deviation of outer ring axis should be strictly controlled to avoid contact stress concentration.
5. The inner or outer rings can be separated to facilitate installation and disassembly.
3. cylindrical roller bearing Application:
Large and medium electric motors
locomotives, machine tool spindle,
internal combustion engine,
generator, gas turbine,
reduction gear box,
rolling mill,
vibrating screen
hoisting transport machinery
| Bearing No. | Weight(kg) | d(mm) | Dr(mm) | B(mm) |
| F-227932 | 0.12 | 20 | 36 | 30 |
| F-219593 | 0.144 | 25 | 42 | 30 |
| F-204045 | 0.27 | 30 | 49 | 34 |
| F-219590 | 0.28 | 35 | 55 | 36 |
| F-123243 | 0.4 | 45 | 66 | 40 |
| F-210408 | 0.46 | 50 | 72 | 40 |
| HS-262 | 0.86 | 55 | 83 | 46 |
| RNNX22AV | 0.895 | 60 | 86 | 46 |
| F-24*40.3*26 | 0.94 | 65 | 93 | 46 |
| RNN3005X3V | 1.12 | 70 | 100 | 54 |
| F-217615 | 1.35 | 75 | 107 | 54 |
| F-210304 | 1.8 | 80 | 116 | 60 |
| RNN306X3V | 1.85 | 85 | 121 | 60 |
| F-32*46.6*28 | 2.6 | 90 | 130 | 67 |
| F-208098 | 2.6 | 100 | 139 | 67 |
| RNN3007X3V | 3.95 | 110 | 156 | 80 |
| F-385328 | 4.52 | 120 | 167 | 80 |
| HS-263 | 6.7 | 130 | 183 | 95 |
| RNNX10V | 7.914 | 140 | 197 | 95 |
| F-237005 | 8.215 | 150 | 206 | 100 |
| F-229575.1 | 11.09 | 160 | 224 | 109 |
| 567079B | 15.6 | 170 | 242 | 122 |
|
|
